Tutorial: Building an Interactive Weather Dashboard

In this tutorial, you will create a professional weather analysis dashboard that explores Seattle weather patterns from 2012-2015.

By the end, you'll have built a complete interactive application with multi-year filtering, animated charts, and a modern Material UI design that works beautifully in both light and dark modes.

Prerequisites

Before starting, ensure you have:

Step 1: Provide Context

Before we start building, let's examine an existing project to understand the key elements of an effective weather visualization.

  • In VS Code, open the Copilot Chat interface
  • Click the Pick Model dropdown and select a powerful model
  • Click the Set Agent dropdown and select Agent
  • Ask the agent to read and summarize the context:
For context please read and summarize https://altair-viz.github.io/case_studies/exploring-weather.html using the #fetch tool.
  • Take a moment to review the summary. This summary will guide our dashboard design!

Step 2: Plan Your Dashboard

Now that we have the context, let's use the HoloViz App Architect agent to design our application architecture. This agent knows best practices for Panel dashboards and will create a comprehensive plan.

  • Select the HoloViz App Architect agent
  • Then ask:
Plan the most awesome dashboard for exploring the Seattle Weather dataset:

- Enable the user to filter multiple years. Default is 2015.
- Include plots for temperature and wind grouped by year
- Include a plot by weather type
- Include a table with the raw data
- Use ECharts with awesome transitions
- Use consistent and modern styling for the plots and Page

Keep it simple:

- clean, well-organized and well tested code
  • Press Enter and wait for the HoloViz App Architect to respond

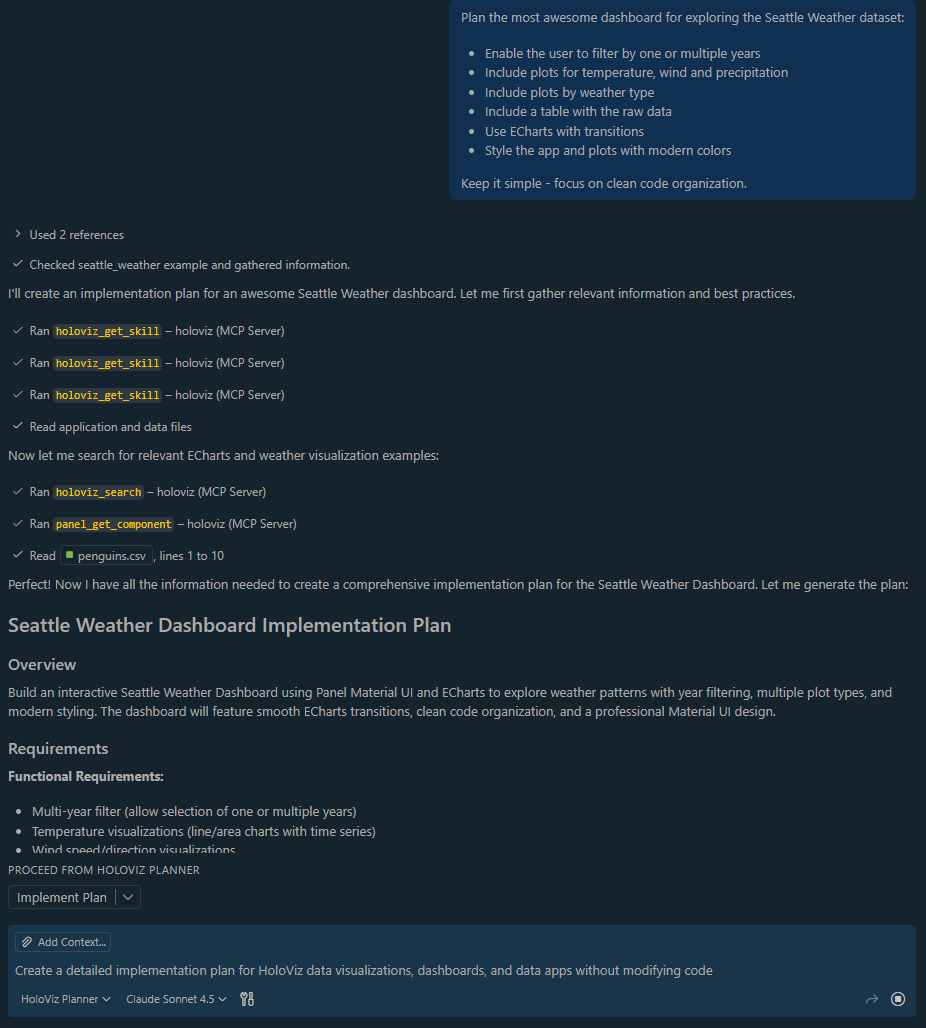

HoloViz App Architect

What you'll see

The architect will provide a detailed architecture including:

  • Data layer with caching and filtering functions
  • Chart creation functions using ECharts
  • Dashboard class with reactive parameters
  • Recommendations for file organization
  • Color palette suggestions

Take time to read through the plan - it's the blueprint for your application!

Step 3: Implement the Dashboard

With a solid plan in hand, let's bring it to life!

  • In the same Copilot Chat conversation, switch to the Agent and ask:
Implement the plan outlined above.
  • Wait for the agent to generate the complete implementation

The agent follows the architecture plan we reviewed, ensuring clean separation of concerns.

  • Once the code is generated, the agent will create tests and run them

You should see output like:

✓ 23 tests passed
✓ Server starting on port 5006
  • Click the server URL to view your dashboard!

Dashboard Served

Checkpoint

If you see an interactive dashboard with charts, filters, and a data table - congratulations! You've built a complete data application. Try:

  • Selecting different years in the filter
  • Hovering over the charts to see interactive tooltips
  • Exploring the animated transitions when filters change

Step 4: Test and Fix the Dashboard

  • Fix issues: When testing the app, you might identify issues that you can ask the agent to fix.

Step 5: Fine-tune the Dashboard

Once the dashboard is running, you can further fine-tune it:

  • Add more visualizations: Include humidity, pressure, or other weather metrics
  • Style: Improve the styling of the app.
  • Download Data: Add more or more buttons to enable the user to download the data
  • Enhance interactivity: Add cross-filtering between charts
  • Documentation: Add documentation

What You've Accomplished

Congratulations! In this tutorial, you have:

  • ✅ Used the HoloViz App Architect agent to design a complex dashboard architecture
  • ✅ Implemented a multi-file Python application with proper separation of concerns
  • ✅ Created animated, interactive charts with ECharts
  • ✅ Built a Material UI dashboard with professional styling
  • ✅ Implemented theme support for light and dark modes
  • ✅ Used reactive programming with Panel parameters
  • ✅ Debugged and fixed styling issues
  • ✅ Wrote and ran a comprehensive test suite
  • ✅ Created a shareable single-file version

You now have a production-ready weather dashboard and the skills to build your own data applications!
